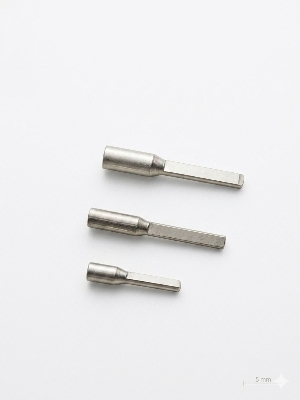

Aluminium Smart Meter Lug

Aluminium Smart Meter Lug Specification

Outer Diameter
8 mm

Length
35 mm

Finish
Smooth, Tin Plated

Fabrication Process
Forged and Machined

Temper
T6

Usage & Applications
Electrical Meter Connections, Power Distribution, Industrial Wiring

Features
Durable, Corrosion Resistant, Reliable Grip

Thickness
3 mm

Width
12 mm

Corrosion Resistant
Yes

Diameter
8 mm

Material Grade
Al 99.5%

Material
Aluminium

Cross Dimension
Customizable

Size
Standard/Customized

Product Type
Aluminium Smart Meter Lug

Shape
Rectangular Loop

Strength
High Strength

Hardness
Brinell 60-90 HB

Alloy
Yes

Grade
EC Grade Aluminium

Surface Treatment
Tin Plated

Dimension (L*W*H)
35mm x 12mm x 8mm

Color
Silver

Conductor Entry Type
Single Entry

Applicable Standards
IS 8309, IEC 61238-1

Flame Retardant
Yes

Connection Type
Crimp/Clamping

Current Rating
Up to 60A

Mounting Type
Screw Type

RoHS Compliant
Yes

Operating Temperature
-20C to 85C

Contact Resistance
1.2 m

Packaging Type
Poly Pack / Boxed

Weight
Approx. 15 grams

Aluminium Smart Meter Lug Trade Information

Minimum Order Quantity
10000 Pieces

Payment Terms
Cheque

Supply Ability
100000 Pieces Per Month

Delivery Time
1 Months

Sample Available
Yes

Sample Policy
Free samples are available

Main Export Market(s)
Asia

Main Domestic Market
All India, South India, West India, Central India, North India, East India, Karnataka, Kerala, Gujarat, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Tripura, Telangana, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal

About Aluminium Smart Meter Lug

An aluminium smart meter lug (or terminal lug) is a heavy-duty electrical connector used to safely terminate thick aluminium service cables into electricity smart meters or main distribution boxes. Because smart meters manage continuous, high-current household loads and feature sensitive digital telemetry, achieving a rock-solid physical connection is critical to avoid overheating, power fluctuations, or meter damage

Durable & High-Strength Construction

Crafted from T6 tempered EC Grade Aluminium, the Smart Meter Lug offers superior mechanical strength and reliability. Its forged and machined fabrication ensures durability, while the tin-plated surface enhances resistance to corrosion, promising longevity and consistent performance under demanding electrical conditions.

Versatile Electrical Applications

Designed for a broad range of electrical connections, this lug is suitable for smart meter terminals, power distribution panels, and diverse industrial wiring setups. With both crimp and clamping connectivity, it accommodates standard and customized sizes, providing dependable solutions for varying installation needs.

Safe, Compliant, and User-Friendly

Built to meet IS 8309 and IEC 61238-1 standards, the Aluminium Smart Meter Lug assures operational safety. It is RoHS compliant, flame retardant, and maintains low contact resistance, making it a trusted choice for secure and efficient electrical installations. Its screw-type mounting ensures straightforward and firm assembly.

FAQ's of Aluminium Smart Meter Lug:

Q: How do I install the Aluminium Smart Meter Lug?

A: The lug features a screw-type mounting and supports both crimping and clamping connections. Simply place the prepared conductor into the single entry port, secure it using the appropriate method, and tighten with a screw for firm attachment.

Q: What environments and temperature ranges can this lug withstand?

A: This lug is designed to perform reliably across a wide range of environments, operating efficiently between -20C and 85C. Its aluminium alloy and flame retardant, tin-plated finish provide added durability in both indoor and outdoor installations.

Q: What benefits does tin plating offer on this lug?

A: Tin plating enhances the lug's resistance to corrosion, prolongs its operational life, and ensures a smooth finish for optimal electrical contact, making it suitable for harsh power distribution or industrial wiring environments.

Q: Where can I use the Aluminium Smart Meter Lug?

A: This product is versatile and recommended for use in electrical meter connections, power distribution panels, and industrial electrical wiring. Its high-strength, corrosion-resistant build ensures suitability in a wide range of electrical installations.

Q: What standards and certifications does this lug comply with?

A: The Aluminium Smart Meter Lug meets IS 8309 and IEC 61238-1 standards, confirming its quality and performance. It is also RoHS compliant and flame retardant for enhanced safety in electrical applications.

Q: Can the lug dimensions be customized to fit my installation needs?

A: Yes, while standard dimensions are 35mm x 12mm x 8mm, the lug is available in customized sizes and cross-dimensions to accommodate specific project or wiring requirements.

Q: What is the main benefit of using EC Grade Aluminium with T6 temper in this product?

A: EC Grade Aluminium provides excellent electrical conductivity, while the T6 temper ensures high mechanical strength and hardness (Brinell 60-90 HB), resulting in a lug that is both electrically efficient and robust for demanding applications.
